T-600 Deep Water Well Drilling Rig for Trailer 600m Depth with 200-500mm Hole for Water Well Drilling

1
MOQ
120000
Prix
T-600 Deep Water Well Drilling Rig for Trailer 600m Depth with 200-500mm Hole for Water Well Drilling
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Mettre en évidence:

T-600 deep water well drilling rig

,

trailer-mounted water well drill rig

,

600m depth water well drilling machine
Informations de base
Place of Origin: China
Nom de marque: Glorytek
Model Number: T-600
Conditions de paiement et expédition
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 10 Units/Month
Description de produit

Product Description


Product Description

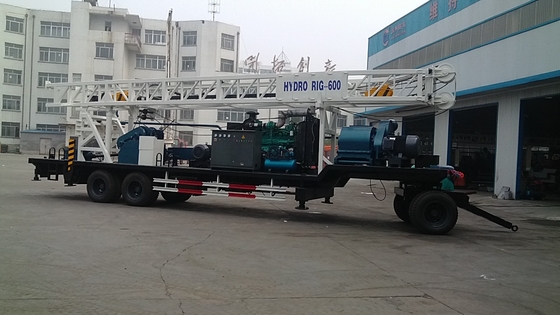

T-600 Deep Water Well Drilling Rig for Trailer 600m Depth with 200-500mm Hole for Water Well Drilling 0
T-600 Trailer Water Well Drilling Rig
1. It's a rotary table drilling rig which is mainly applied to water well, construction, national defense building foundation, geothermic well and other projects with holes.
2. It can drill in soil, sand, and the general soft rock layer;
3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved;
4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.
5. Power force is from the CUMMINS diesel generator set which can be easily used outdoors;
6. The rotary table can provide three different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency;
7. The rig can erect by itself, convenient and reliable;
8. Drill chassis use traction device which can be towed by the general tractors.
Specification
Technical Data
Model of drilling rig
T-600
Drilling depth
600m
Diameter of hole
200-500mm
Diameter of rotary table thru hole
500mm
Max Torque for rotary table
20 KN.M
Speed of rotary table
50,80,150r/min
Capacity with single rope of winch
Main winch
4 Ton
Vice winch
3 Ton
The capacity for main winch
24 ton
The capacity for vice winch
12ton
Kelly pipe
108*108*10500mm
drilling pipe
89*10*9000mm
The max load of mast
36 Ton
Effective height of mast
14.5m
Input power for rig
55Kw
Mud pump
Liner Diameter (mm)
100 110 120 130 140
Stroke of piston (mm)
160
Theoretical flow (L / S)
8.4 ;10.3; 12.2;14.3; 16.6
Rated pressure (Mpa)
10 8 7 6 5
Diameter of suction tube
152mm
Diameter of discharge pipe
65mm
Input power kW(HP)
95 (130)
Gear pumps
Model
CB-E532F
Displacement(ml/r)
30
Rated pressure(Mpa)
20
Max pressure(Mpa)
25
Motor power
11Kw
Power
Model
generator Set
Diesel engine
CUMMINS-315 Hp
Transport size (L*W*H)
16650*2500*4200mm
Company Profile

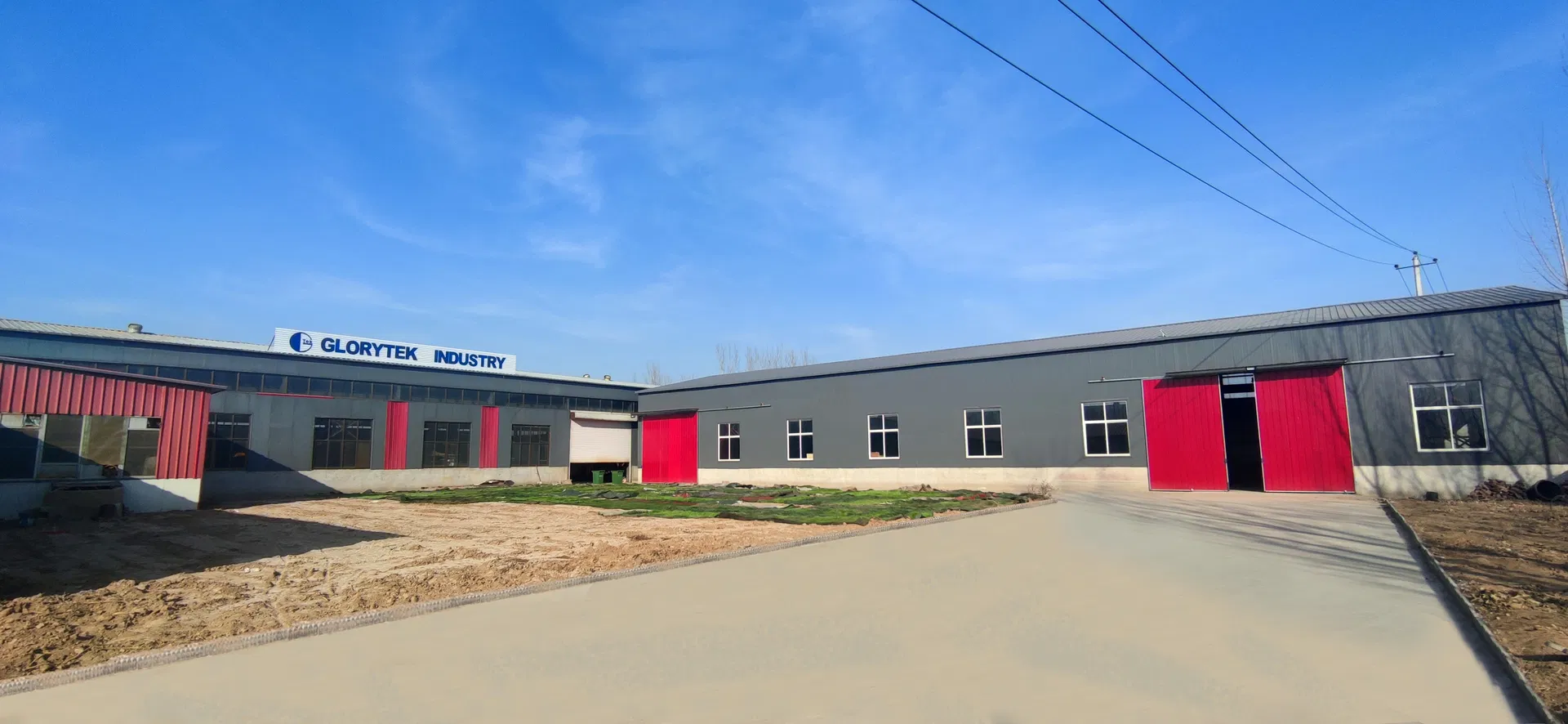

T-600 Deep Water Well Drilling Rig for Trailer 600m Depth with 200-500mm Hole for Water Well Drilling 1
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
