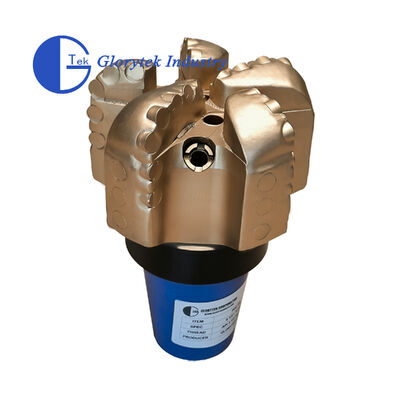

Advanced Matrix or Steel PDC Drill Bit 6 1/2 Inch 5 Blades for Hard and Abrasive Rocks

1 pièce
MOQ
USD2300-2800 per piece
Prix
Advanced Matrix or Steel PDC Drill Bit 6 1/2 Inch 5 Blades for Hard and Abrasive Rocks
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Personnalisé:: Personnalisé
Avantage: Haute efficacité, résistant à l'usure
Reliez le fil: API ou Reg ou personnalisé
Matériel:: acier et matrice
Tailles disponibles: 2 7/8 - 26 pouces
Industries applicables: puits d'eau, puits de pétrole et HDD
Taille de la lame: 6-12 pouces
Formations: Formations douces à moyennes
Disponible avec des lames: en fonction de votre diamètre
Informations de base
Lieu d'origine: Chine
Nom de marque: Glorytek
Certification: CE
Numéro de modèle: 6 et demi.
Conditions de paiement et expédition
Détails d'emballage: Emballage de navigation maritime
Délai de livraison: 20 jours
Conditions de paiement: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement: 4000 pièces par mois
Description de produit

PDC Drill Bit


Product Description


PDC drill bit are drilling tools used in the oil and gas industry to penetrate rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters. PDC bits are commonly used in directional drilling applications due to their stability and directional control capabilities.

Advanced Matrix or Steel PDC Drill Bit 6 1/2 Inch 5 Blades for Hard and Abrasive Rocks 0


Technical Parameter


Bit Type 6" 8-1/2" 8-1/2" 12-1/4" Bit Type 17-1/2" GM1606T
IADC Code M423 M432

M332		 M323 M432 M332 IADC Code M323
Blade 5 6 8 6 Blade 6
Cutter Size (mm) Φ13
MM
 Φ16
MM
 Φ13
MM
 Φ16MM Cutter Size (mm) Φ16MM;Φ13MM
Nozzle Qty/Type 5 13.2 9.6 30.78 Cutter Qty Φ16×58;Φ13×81
Nozzle Qty/Type 3NZ 6NZ 4NZ 6NZ Nozzle Qty/Type 8NZ
Gauge Length 1.5" 2.2" 2" 2.5" Gauge Length (mm) 110
Connection 3-1/2" API REG 4-1/2" API REG 4-1/2" API REG 6-5/8" API REG Connection 7-5/8" API REG
Make up Torque(KN.m) 10.4~11.4 24.1~26.5 24.1~26.5 51.7~56.9 N.W./ G.W.(KG) 338/388
Rotary Speed(rpm) 60-260 60-260 60-260 60-260 Nozzle Size (inch) 10/32
Weight on Bit(KN) 8-50 20-100 20-100 30-140 Rotary Speed(Rpm) 60-260
Max.WOB(KN) 90 130 130 180 Weight On Bit(KN) 30-200
Flow Rate(lps) 10-30 22-35 22-35 38-70 Max.WOB (KN) 240





Flow Rate(lps) 45-80



Company Profile


Glorytek Industry ( Beijing) Co., Ltd located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.


Advanced Matrix or Steel PDC Drill Bit 6 1/2 Inch 5 Blades for Hard and Abrasive Rocks 1

Advanced Matrix or Steel PDC Drill Bit 6 1/2 Inch 5 Blades for Hard and Abrasive Rocks 2

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
